Our Bogie-Hearth 1000 °C high-temperature furnace (BHF-01) is designed for the heat treatment of automotive parts. Designed with energy efficiency and safety in mind, this electric heater-based bogie-hearth furnace was designed to enable high accuracy, energy efficiency, and ease of production.

Furnace Construction

• Maximum operating temperature up to 1000°C (Working : 800°C)
• Inner dimension: Width 1000 mm x Depth 1500 mm x Height 1000 mm
• Bogie dimension: Width 1000 mm x Depth 1500 mm x Height 410 mm above floor
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Motorized furnace boogie
• Free radiating system by an electric heater from both sides of the furnace wall
• Remote floor standing type electrical control panel

Electrical Features

• 2 patterns programmable digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• 6-channel paperless thermo recorder
• Full proportional heating control by SCR power regulator to enable high accuracy, fast response, and uniformity while
• Digital indicating Kwh meter

Safety

• Overheat protection system

Warranty

• 1-year spare parts and services warranty (normal operation)

Our Bogie-Hearth 1200 °C high-temperature furnace (BHF-02) is designed for the heat treatment of general industrial parts. Designed with ease of production and safety in mind, this electric heater-based bogie-hearth furnace was designed to enable high accuracy, energy efficiency, and ease of use.

Furnace Construction

• Maximum operating temperature up to 1200°C
• Inner dimension: Width 2000 mm x Depth 2000 mm x Height 2000 mm
• Bogie dimensions: Width 2000 x Depth 2250 mm x Height 850 mm above floor
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Motorized furnace boogie
• Direct heating by electric heater from both sides of the furnace wall
• Remote floor standing type electrical control panel

Electrical Features

• 2 patterns digital indicating temperature controller
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator to enable high accuracy, fast response, and uniformity while extending heater life.

Safety

• Overheat protection system

Warranty

• 1-year spare parts and services warranty (normal operation)

Our heat treatment furnace 1200 °C with manual swing door (BHF-MSD) is designed for annealing & normalizing the metal core of the electrical transformer. Designed with ease of production, efficiency, and safety in mind, this electric heater-based bogie-hearth furnace was designed to enable energy efficiency and ease of use. Made in Indonesia, this furnace was designed for a reputed oil & gas company.

Furnace Construction

• Maximum operating temperature up to 1200°C (Working : 800°C)
• Inner dimension: Width 1000 mm x Depth 1000 mm x Height 1000 mm
• Bogie dimension: Width 1080 mm x Depth 1250 mm x Height 400 mm
• Hi-grade insulating fire bricks interior backed up by ceramic heater fibre board & blanket
• Motorized furnace bogie
• Single-leaf manual swing door
• Pneumatic actuated exhaust dumper
• Free heat radiating system by electric heaters from both sides of the furnace wall
• Remote floor standing type electrical control panel

Electrical Features

• Microprocessor-based digital indicating temperature controller
• Overheat protection system
• Digital timing system for the soaking/holding process
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator to enable better uniformity while maintaining efficiency and extending heater life
• Working pallet (Optional)

Safety

• Overheat protection system

Warranty

• 1-year spare parts warranty (normal operation)

Our Bogie-Hearth 1200 °C high-temperature furnace with 4 heating sides (BHF-4HS) is designed for the heat treatment of general industrial parts. Designed with temperature uniformity, ease of production, and safety in mind, this electric heater-based bogie-hearth furnace was designed to enable high accuracy, energy efficiency, and ease of use.

Furnace Construction

• Maximum operating temperature up to 1200°C
• Inner dimension: Width 1250 mm x Depth 2250 mm x Height 1000 mm
• Bogie dimensions: Width 1300 x Depth 2630 mm x Height 725 mm above floor
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Motorized furnace bogie
• Direct heating by an electric heater from 4 sides of the furnace wall
• Remote floor standing type electrical control panel

Electrical Features

• 2 patterns digital indicating temperature controller
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator to enable high accuracy, fast response, and uniformity while extending heater life

Safety

• Overheat protection system

Warranty

• 1-year spare parts and services warranty (normal operation)

Our Bogie-Hearth 1200 °C high-temperature furnace with 5 heating sides (BHF-5HS) is designed for the heat treatment of mining industry parts. Designed with temperature uniformity, ease of production, and safety in mind, this electric heater-based bogie-hearth furnace was designed to enable high accuracy, temperature uniformity, and ease of use.

Furnace Construction

• Maximum operating temperature up to 1200°C
• Inner dimension: Width 800 mm x Depth 1600 mm x Height 800 mm
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Motorized lifting up door
• Motorized furnace boogie
• Manual adjustable air inlet
• Direct heating by an electric heater from five sides (4 sides of furnace wall and 1 side on boogie covered by silicon carbide sheet) to provide temperature uniformity inside the chamber
• Remote floor standing type electrical control panel

Electrical Features

• 2 pattern programmable digital indicating temperature controller
• Industrial process thermocouple sensor
• Full proportional control by SCR power regulator to enable high accuracy, fast response, and uniformity while extending heater life

Safety

• Overheat protection system

Warranty

• 1-year spare parts and services warranty (normal operation)

Our Bogie-Hearth 800 °C with circulating air furnace (BHF-CA) is designed for the heat treatment of various moulds and dies. Designed with temperature uniformity, ease of production, and safety in mind, this forced convection electric heater-based bogie-hearth furnace was designed to comply with production heat uniformity requirements while maintaining energy efficiency and ease of use.

Furnace Construction

• Maximum operating temperature up to 800°C (Working : 600°C)
• Inner dimension: Width 900 mm x Depth 1010 mm x Height 600 mm
• Bogie dimension : Width 900 mm x Depth 1010 mm x Height 600 mm
• Hi-grade fire brick backed up by insulating bricks
• Motorized lifting up door
• Motorized furnace boogie equipped with manual turn table
• Forced convection with:
  • Hot air re-circulating system
  • Combination airflow from both side return to the top side of the furnace wall
• Remote floor standing type electrical control panel

Electrical Features

• 12 segments (6 heating steps) programmable digital indicating temperature controller
• Industrial process type K temperature sensor
• Full proportional control by SCR power regulator
• 6-channel paperless thermo recorder

Safety

• Overheat protection system

Warranty

• 1-year spare parts and services warranty (normal operation)

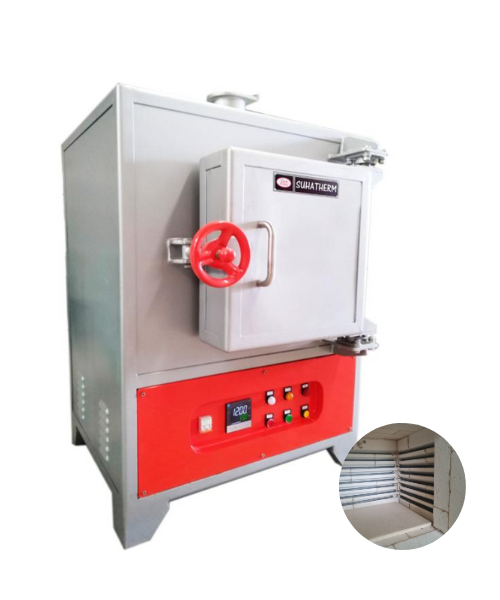

• Ideal for laboratory use
• Maximum operating temperature up to 1200°C
• Inner dimension :
  • BF-02/15 : Width 240 mm x Depth 270 mm x Height 240 mm (Volume : 15 Litre)
  • BF-02/27 : Width 300 mm x Depth 300 mm x Height 300 mm (Volume : 27 Litre)
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Manual adjustable heat resistant alloy outlet
• Single leaf air tight swing door secured by manual steer
• Free radiating by electric heaters at left, right & rear side of furnace wall
• Furnace built-in type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control by magnetic contactor (Optional: Full proportional heating control by SCR power regulator)

Spare Parts Warranty : 1 Year (Normal Operation)

• Ideal for laboratory use
• Maximum operating temperature up to 1200°C
• Inner dimension :
  • BF-02A/15 : Width 240 mm x Depth 270 mm x Height 240 mm (Volume : 15 Litre)
  • BF-02A/27 : Width 300 mm x Depth 300 mm x Height 300 mm (Volume : 27 Litre)
• Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
• Manual adjustable heat resistant alloy outlet
• Single leaf air tight swing door secured by manual steer
• Free radiating by electric heaters at left, right & rear side of furnace wall
• Furnace wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control by magnetic contactor (Optional: Full proportional heating control by SCR power regulator)

Spare Parts Warranty : 1 Year (Normal Operation)

The SUHATHERM Laboratory Muffle furnace LBF-05/5 have been designed, and proven for daily laboratory use requiring any form of heat treatment, drying, baking, and other forms of testing. These models stand out for their excellent reliability, quality, and advanced design, including the ability to perform up to 64 heating steps/patterns. This model is proudly Made in Indonesia.

• Max. Operating Temperature :
  • Continuous : 1100  °C
  • Short-Term  : 1200 °C
• Volume (Capacity)                 : ± 5 Litre
• Inner Dimension (approx.)  : W. 170 mm x D. 200 mm x H. 150 mm
• Outer Dimension (approx.) : W, 490 mm x D. 530 mm x H. 635 mm
• Net Weight (approx.)          : ± 90 Kg (Furnace Only)
• Hi-Grade insulating fire bricks interior
• Manual adjustable exhaust dumper
• Single-leaf manual swing door secured by manual toggle clamp
• Heating Element:
  • Material    : Fe-Cr-Al Heating Alloy
  • Model       : Spiral wire in Grooves
  • Placed on the left, right & rear side of the furnace wall
• Heating power: 1 Phase, 220 VAC, 50-60 Hz, ± 3 kW
• Thermal rate (at empty load, number approx. and may vary depending on furnace environment):
  • 30 °C - 500 °C, Thermal Rate     : ± 25 °C./Min
  • 500 °C - 800 °C, Thermal Rate   : ± 14 °C/Min
  • 800 °C - 1200 °C, Thermal Rate : ± 5 °C/Min
• Thermocontroller :
  • PID Control, Fuzzy PID control, self-tuning & auto-tuning control
  • Indication accuracy : ± 0.3%, ± 1 digit
  • Up to 64 heating steps and programmable to :
    • 1 Nos heating patterns with 64 heating steps/pattern
    • 2 Nos heating patterns with 32 heating steps/pattern
    • 4 Nos heating patterns with 16 heating steps/pattern
    • 8 Nos heating patterns with 8 heating steps/pattern
• Built-in furnace electrical control panel
• Industrial process thermocouple type K with ceramic protection tube & aluminium protection head Ex. SUHATHERM
• Pulse switching control by Solid State Relay (SSR)
  c/w Features:
  • Fast typical switching or cycle time (0.5 ~ 1 Sec)
  • Medium to high accuracy and response
  • No mechanic motion
  • No electrical noise

• 1-year spareparts warranty*
  *Terms & conditions apply

Please contact us at cs@smindo.co.id for detailed technical specifications and any other questions regarding SUHATHERM LBF-05/5. Our team would be happy to assist.
