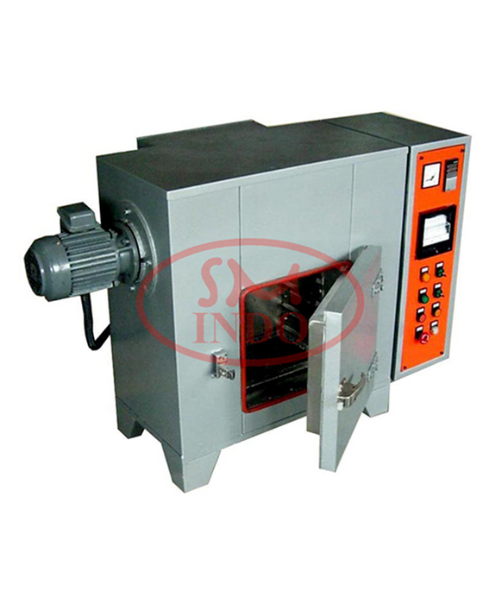

SUHATHERM Bench Oven BO-03/21 is a multipurpose - heavy duty 21 ltr forced convection benchtop oven designed for durability test of various components. This oven features maximum operating temperature of 300°C, with full proportional heating control for better heater control and extended durability.

This oven is available in 21 ltr & 53 ltr sizings, and features an optional paperless thermorecorder.

• Maximum operating temperature up to 300°C
• Inner dimension: W. 350 mm x D. 200 mm x H. 300 mm (21 Ltr)
• Outer dimension (Approx.): W. 1280 mm x D. 580 mm x H.800 mm
• SUS 304 stainless steel interior
• Mild steel exterior finished by protective paint
• Forced convection with:
  • Hot air recirculating heating system
  • Electric heater elements
  • Horizontal flow and side to side blowing direction
• Manual adjustable air inlet & exhaust outlet damper
• Microprocessor based digital indicating temperature controller c/w features:
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
  • PID and Fuzzy PID control with auto-tuning
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple sensor type K
• Full proportional heating control by SCR power regulator (thyristor)

*Optional 4-channel paperless recorder (please specify at time of order).
*1-year spareparts warranty*

*Terms & Conditions Apply

Please contact us at cs@smindo.co.id for custom sizings & detailed technical specifications prior to order.

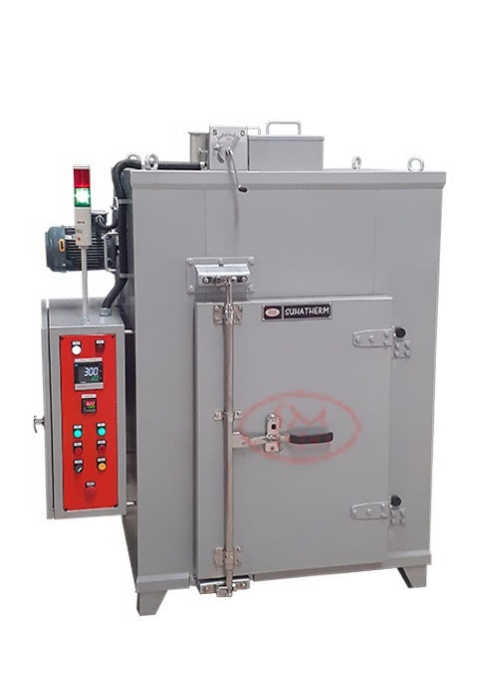

Our SUHATHERM Drying Oven (DCO-03-325) series is designed for industrial baking/drying of various items, might that be automotive components, laboratory samples, and/or coals/minerals. This oven comes with 5 Nos SUS 304 shelves (tray) as standard.

With its compact footprint, this forced convection oven is ideal for uses in tight spaces. SUHATHERM Drying Oven DCO-03-325 has a maximum operating temperature of 300°C, with electrical heating elements.

• Max. operating temperature up to 300 °C
• Inner dimension (approx.): W. 600 mm x D. 600 mm x H. 900 mm (Approx. 325 Ltr)
• Outer dimension (approx.): W. 1420 mm x D. 965 mm x H. 1740 mm
• SUS 304 stainless steel interior
• Air tight single leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Forced convection heating system with:
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
  • Electrical heater
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overtemperature protection system controlled by
  • Hi-limit alarm of chamber temperature control
  • Chamber temperature limiter
  • Electrical interlock system between circulation blower & heater power switching control
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR Power Regulator
  c/w Features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• Included 5 Nos SUS 304 Shelves (Tray)
• Installed Power Source: 3 Phase, 380V, 50 Hz, 4W+Earth, 12.75 kW* *(voltage & frequency customizable to client requirements)

1-year spareparts warranty*
*Terms & conditions apply

Notes:

Please contact us at cs@smindo.co.id to get detailed brochures/technical specifications, and to discuss how this oven is suitable for your needs. Our team would be more than happy to assist.

The SUHATHERM Bench Oven BO-05/125 & BO-05/216 Series is a versatile, multipurpose, up to 500 °C forced convection oven engineered for user friendly operation. It supports automated running of programmable heating patterns, while also offering a manual mode via a digital timing system for flexible and intuitive control.

General Specifications

• Maximum operating temperature up to 500 °C
• Inner dimension:
  • W. 500 x D. 500 x H. 500 mm (BO-05/125, 125 Ltr)
  • W. 600 x D. 600 x H. 600 mm (BO-05/216, 216 Ltr)
• SUS 304 stainless steel interior
• Mild steel exterior finished by Jotun Protective paint
• Air tight single-leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Temperature uniformity survey (TUS) port appended on oven body for calibration
• Oven wall-mounted type electrical control panel

Heating System

• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating heating system
  • Horizontal flow and side to side blowing direction
• Industrial process thermocouple type K ex. SUHATHERM

Safety

• Over temperature protection system with heater limiter, electrical interlock, and hi-limit alarm

Features

• Microprocessor based digital indicating temperature controller with 0.3% indication accuracy
  • Allow to store, recall, and automatically run 8 program heating pattern w/ 8 steps/pattern
  • Digital display screen for set point (SV) and actual (PV) temperature
  • PID & Fuzzy PID auto tuning control
• Digital timing system for manual mode soaking/holding process
• Full proportional heating control by SCR Power Regulator
  c/w Features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• Included SUS 304 Workpiece Trays x 5 Pcs

1-year spareparts warranty*
*Terms & conditions apply

Notes:

Please contact us at cs@smindo.co.id to get detailed brochures/technical specifications, and to discuss how this oven is suitable for your needs. Our team would be more than happy to assist.

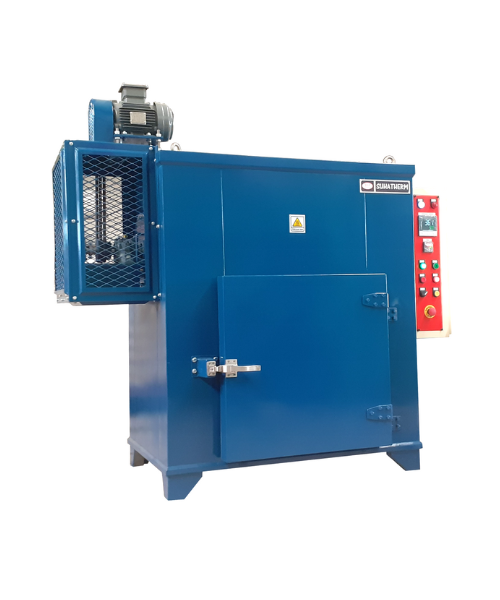

The SUHATHERM Bench Oven BO-05/125 & BO-05/216 Series is a versatile, multipurpose, up to 500 °C forced convection oven engineered for user friendly operation. It supports automated running of programmable heating patterns, while also offering a manual mode via a digital timing system for flexible and intuitive control.

General Specifications

• Maximum operating temperature up to 500 °C
• Inner dimension:
  • W. 500 x D. 500 x H. 500 mm (BO-05/125, 125 Ltr)
  • W. 600 x D. 600 x H. 600 mm (BO-05/216, 216 Ltr)
• SUS 304 stainless steel interior
• Mild steel exterior finished by Jotun Protective paint
• Air tight single-leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Temperature uniformity survey (TUS) port appended on oven body for calibration
• Oven wall-mounted type electrical control panel

Heating System

• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating heating system
  • Horizontal flow and side to side blowing direction
• Industrial process thermocouple type K ex. SUHATHERM

Safety

• Over temperature protection system with heater limiter, electrical interlock, and hi-limit alarm

Features

• Microprocessor based digital indicating temperature controller with 0.3% indication accuracy
  • Allow to store, recall, and automatically run 8 program heating pattern w/ 8 steps/pattern
  • Digital display screen for set point (SV) and actual (PV) temperature
  • PID & Fuzzy PID auto tuning control
• Digital timing system for manual mode soaking/holding process
• Full proportional heating control by SCR Power Regulator
  c/w Features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• Included SUS 304 Workpiece Trays x 5 Pcs

1-year spareparts warranty*
*Terms & conditions apply

Notes:

Please contact us at cs@smindo.co.id to get detailed brochures/technical specifications, and to discuss how this oven is suitable for your needs. Our team would be more than happy to assist.

SUHATHERM Bench Oven BO-03/53 is a multipurpose - heavy duty 53 ltr forced convection benchtop oven designed for durability test of various components. This oven features maximum operating temperature of 300°C, with full proportional heating control for better heater control and extended durability.

This oven is available in 21 ltr & 53 ltr sizings, and features an optional paperless thermorecorder.

• Maximum operating temperature up to 300 °C
• Inner dimension: W. 400 mm x D. 400 mm x H. 335 mm (53 Ltr)
• Outer dimension (Approx.): W. 1335 mm x D. 770 mm x H. 1085 mm
• SUS 304 stainless steel interior
• Mild steel exterior finished by protective paint
• Forced convection with:
  • Hot air recirculating heating system
  • Electric heater elements
  • Horizontal flow and side to side blowing direction
• Manual adjustable air inlet & exhaust outlet damper
• Microprocessor based digital indicating temperature controller c/w features:
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
  • PID and Fuzzy PID control with auto-tuning
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple sensor type K
• Full proportional heating control by SCR power regulator (thyristor)

*Optional 4-channel paperless recorder (please specify at time of order).
*1-year spareparts warranty*

*Terms & Conditions Apply

Please contact us at cs@smindo.co.id for custom sizings & detailed technical specifications prior to order.

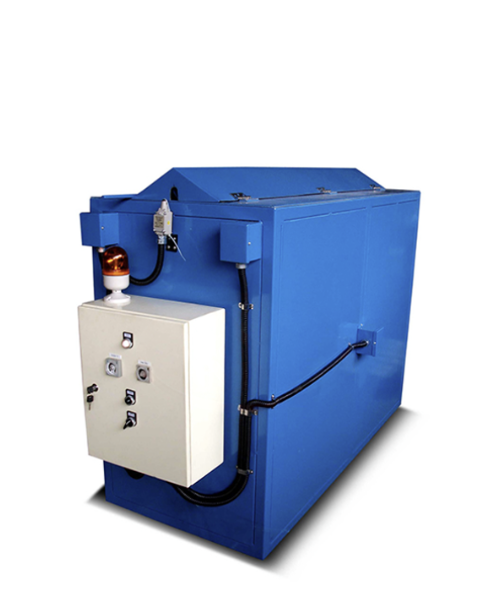

• Suitable for drying process
• Maximum Operating Temperature up to 120°C
• Inner Dimension: Width 600 mm x Depth 1600 mm x Height 1200 mm
• Mechanical convection heating system by radiant heaters.
• SUS 304 Stainless steel plate interior
• Oven wall mounting type electrical control panel
• Analog or microprocessor based digital indicating temperature controller. (Optional)
• Overheat protection system
• Industrial process RTD PT100 Temperature sensor
• On/Off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

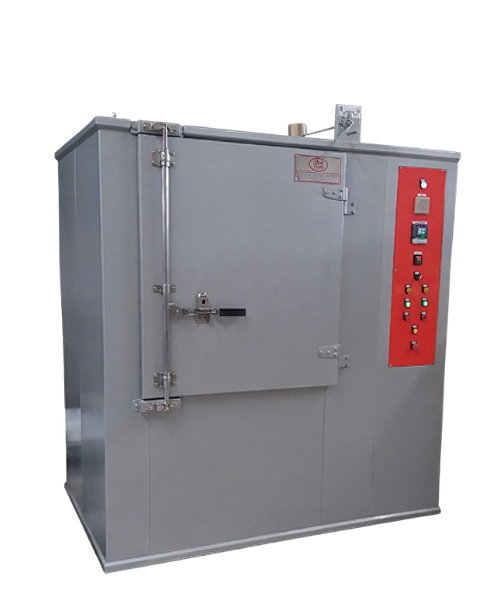

• Suitable for heat processing up to 260°C
• Inner Dimension : Width 450 x Depth 450 x Height 300 mm
• Mechanical convection heating system with 4(four) heating side
• SUS 304 Stainless steel interior.
• Auto swing up door actuated by pneumatic cylinder
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller on each chamber
• Overheat protection system
• Digital timing system for soaking / holding process.
• Industrial process Thermocouple sensor
• On/Off heating control (Optional: Full proportional heating control)
• Power failure protection system

Spare Parts Warranty : 1 Year (Normal Operation)

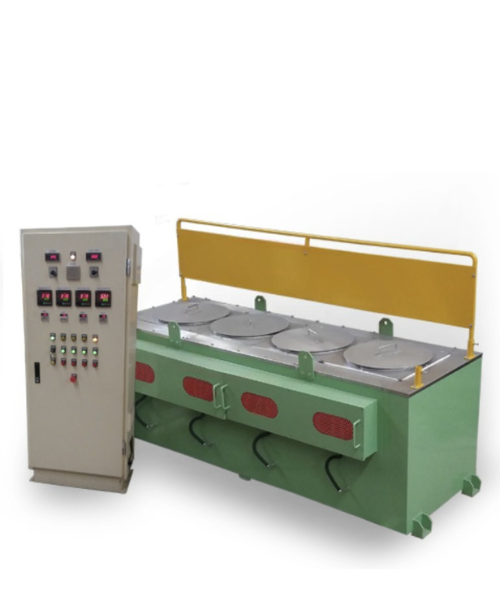

• Suitable for heat processing up to 360°C
• 4 number individual controled heating chamber.
• Overall Dimension: Width 800 x Depth 2400 x Height 825 mm
• SUS 304 Stainless steel interior.
• Mechanical convection heating system on each chamber
• Remote floor standing free electrical control panel
• Microprocessor based digital indicating temperature controller on each chamber
• Overheat protection system
• Digital timing system for soaking / holding process.
• Industrial process Thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

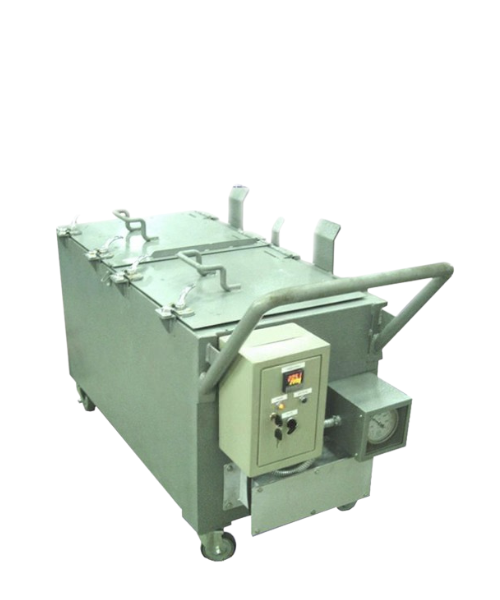

• Mobile operating top loading oven
• Suitable for drying process up to 320°C
• Inner dimension : Width 400 mm x Length 900 mm x 300 mm
• SUS 304 Stainless steel interior
• 2 number air tight single leaf swing up door
• Mechanical convection heating system
• Angle type bimetallic thermometer gauge, range : 500°C
• Oven wall hanging electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On/Off heating control (optional:full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)
