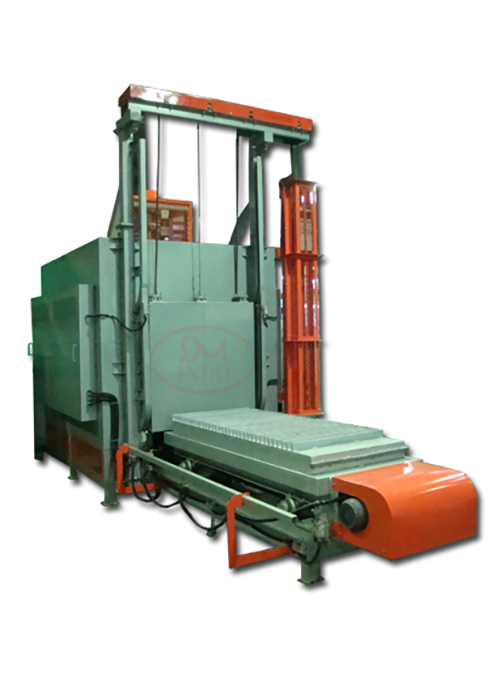

Specification

• Maximum operating temperature up to 500°C
• Inner dimension : Width 1000 mm x Depth 1800 mm x Height 900 mm
• SUS 304 Stainless steel interior
• Motorized lifting up door
• Motorized boogie & run on steel rails
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Digital timing system for soaking / holding process
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

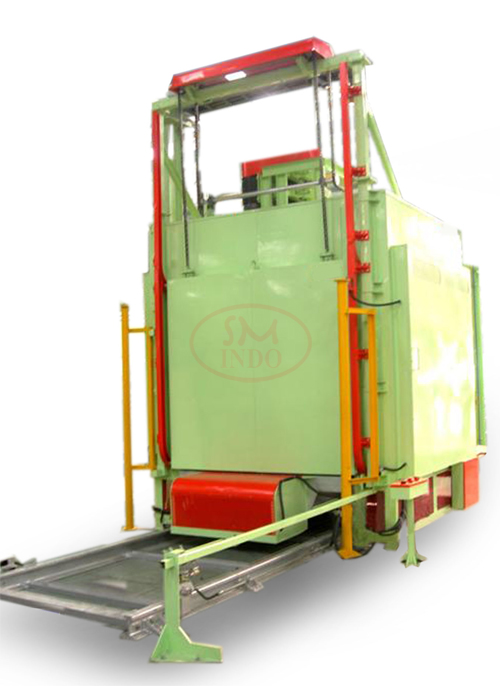

Specification

• Maximum operating temperature up to 400°C
• Inner dimension : Width 2000 mm x Depth 2000 mm x Height 1900 mm
• SUS 304 Stainless steel interior
• Motorized lifting up door
• Motorized boogie & run on steel rails
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• One touch operating system
• PLC ( Programmable Logic Control ) control current
• Microprocessor based digital indicating temperature controller
• Digital timing system for soaking / holding process
• Overheat protection system
• Industrial process thermocouple sensor
• 3 channel paper chart thermo recorder ( Optional: Paperless thermo recorder )
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

Specification

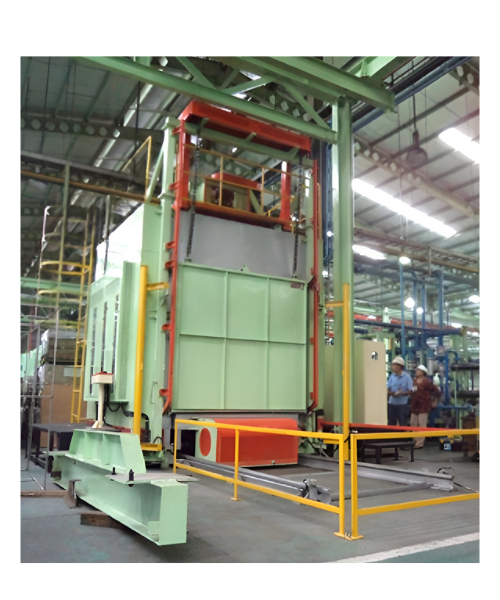

Our Bogie-Hearth 600 °C high-temperature oven (BH-HTO-03) is designed for the stress relieving process in heavy-duty machinery industry

Oven Construction

• Maximum operating temperature up to 600 °C
• Inner dimension: W. 2000 mm x D. 2000 mm x H. 1900 mm
• SUS 304 stainless steel interior, with mild steel plate exterior finished by heat-resistant paint.
• Motorized lifting-up oven door
• Forced convection heating system with:
  • Hot-air recirculating system
• Remote floor-standing type control panel

Work Load Handling Equipment

• The oven will be equipped with a motorized bogie-on-steel-rails.

Electrical Features

• One-touch operating system
• Microprocessor-based digital indicating temperature controllers
• Digital timing system for the soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator

Safety

• Overheat protection
• Overmoving (wrong step) precaution system on oven door
• Emergency push button
• 3-stage tower lamp for oven condition indication

(Optional)

• (Optional) 8-channel paperless thermorecorder
• (Optional) PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

Our Bogie-Hearth 700 °C high-temperature oven (BH-HTO-05) is designed for the stress relieving process and aging process in a large-scale production capacity.

Oven Construction

• Maximum operating temperature up to 700°C
• Inner dimension: W. 1600 mm x D. 1600 mm x H. 800 mm
• SUS 304 stainless steel interior, with mild steel plate exterior finished by heat-resistant paint.
• Motorized lifting-up oven door
• Forced convection heating system with:
  • Hot-air recirculating system
• Remote floor-standing type control panel

Work Load Handling Equipment

• The oven will be equipped with a manual load trolley/rack.

Electrical Features

• One-touch operating system
• Microprocessor-based digital indicating temperature controllers
• Digital timing system for the soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator

Safety

• Overheat protection
• Overmoving (wrong step) precaution system on oven door
• Emergency push button
• 3-stage tower lamp for oven condition indication

(Optional)

• (Optional) 8-channel paperless thermorecorder
• (Optional) PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

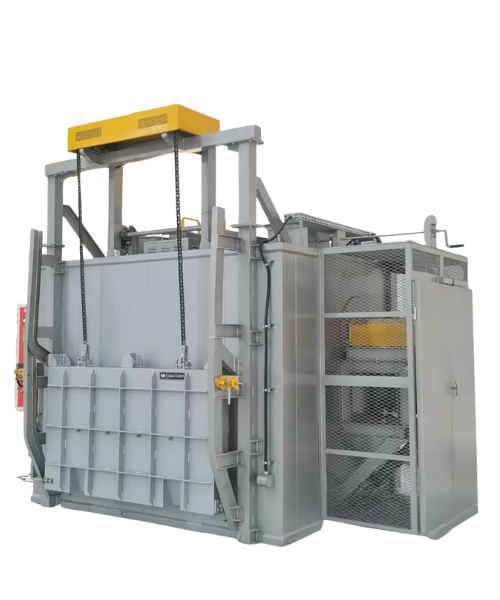

Our Bogie-Hearth 450 °C high-temperature oven (BH-HTO-06) is designed for the pre-heating of pre-fabricated and machined components in a large-scale production capacity.

Oven Construction

• Maximum operating temperature up to 450 °C (Normal Operating Range: 100 - 450°C)
• Inner dimension: W. 1600 mm x D. 1600 mm x H. 800 mm
• SUS 304 stainless steel interior, with mild steel plate exterior finished by heat-resistant paint.
• Motorized lifting-up oven door
• Forced convection heating system with:
  • Hot-air recirculating system
• Oven-wall mounted type electrical control panel

Work Load Handling Equipment

• The oven will be equipped with a manual load trolley/rack.

Electrical Features

• One-touch operating system
• Microprocessor-based digital indicating temperature controllers
• Digital timing system for the soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator

Safety

• Overheat protection
• Overmoving (wrong step) precaution system on oven door
• Emergency push button
• 3-stage tower lamp for oven condition indication

(Optional)

• (Optional) 4-channel paperless thermorecorder
• (Optional) PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
