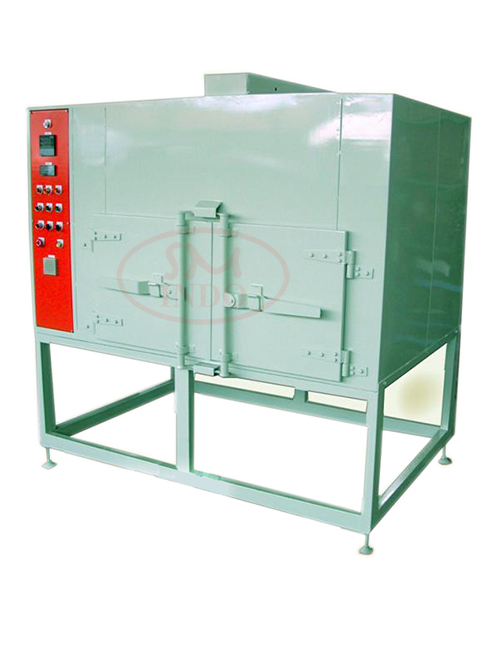

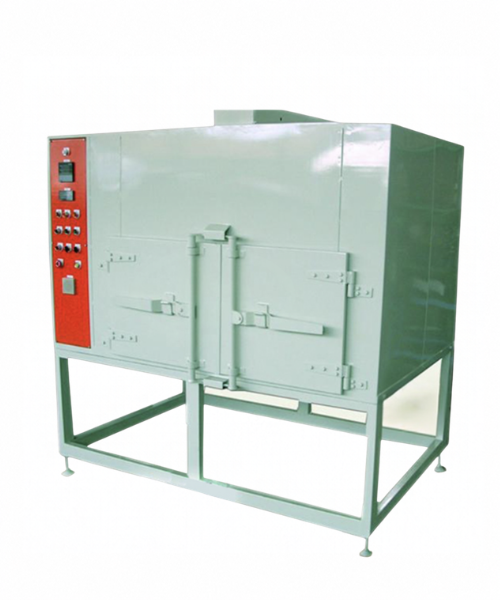

The SUHATHERM Eyeglass Lense Coating Drying Oven (ELC-DO) is designed & manufactured for drying the coating of various eyeglass lenses.

• Maximum operating temperature up to 100°C
• Inner dimension  : W. 1100 mm x D. 1100 mm x H. 500 mm
• SUS 304 stainless steel plate interior
• Double leaf air tight swing doors
• Forced convection heating system with:
  • Hot air re-circulating system
  • Horizontal air flow, side to side blowing direction
• Built-in oven electrical control panel
• Microprocessor based digital indicating temperature controller
• Dedicated overheat protection system
• Digital timing system for soaking/holding process
• Industrial process RTD PT100 temperature sensor
• Full proportional heating control by SCR power regulator

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

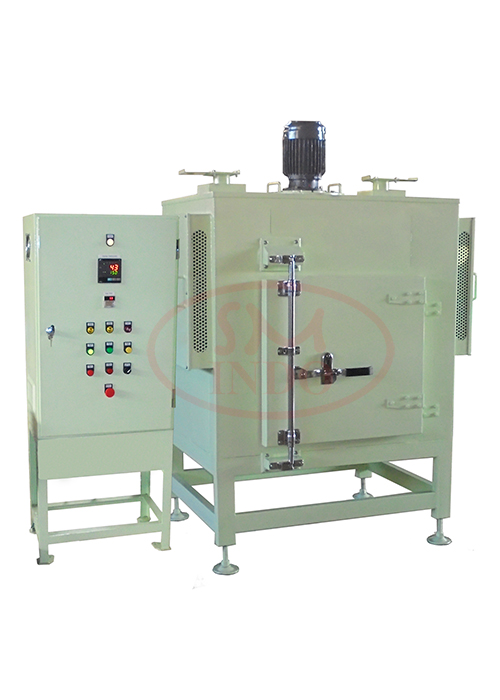

• Designed & manufactured for heat treatment automotive parts
• Maximum operating temperature up to 150°C
• Inner dimension  : Width 650 mm x Depth 650 mm x Height 600 mm
• SUS 304 Stainless Steel plate interior
• Single leaf air tight swing doors
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process RTD PT100 temperature sensor
• Full proportional heating control by SCR power regulator
• Custom work piece rack & rack carrier. (optional)

Spare Parts Warranty : 1 Year (Normal Operation)

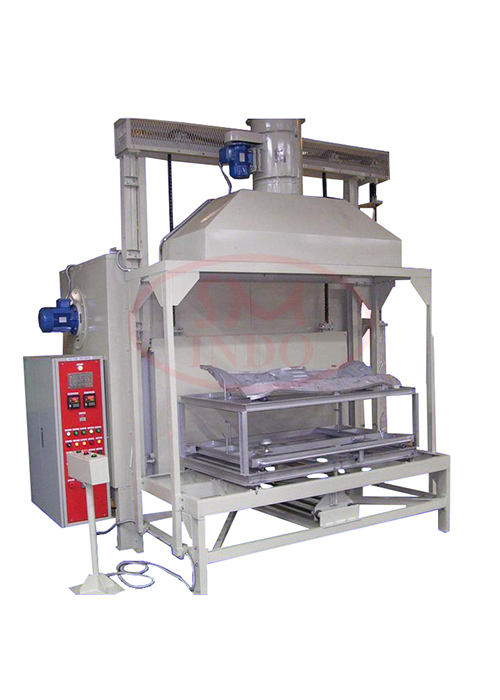

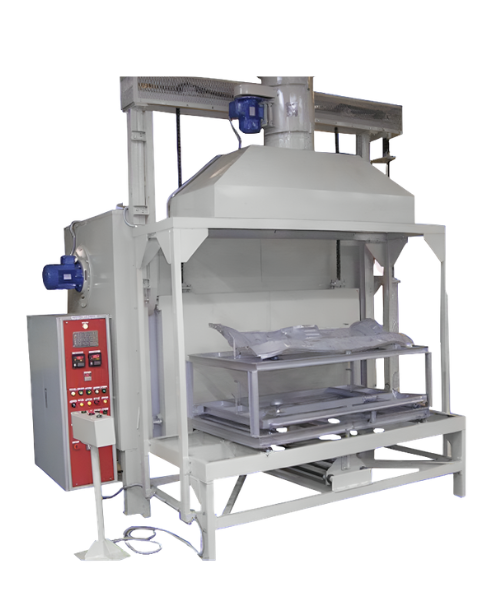

The SUHATHERM Dash Panel Oven DPO-01 is a heat treatment oven - designed for treating automotive dash panel. Equipped with pneumatic sliding table (carrier) - this oven ensures good worker ergonomics.

• Maximum operating temperature up to 280 °C
• Inner dimension: W. 700 mm x D. 1650 mm x H. 875 mm
• SUS 304 stainless steel interior
• Pneumatic lifting up door
• Pneumatic work piece sliding table (carrier)
• Manual adjustable air inlet and exhaust dumper
• Exhaust system (exhaust blower & exhaust hood) at work piece loading & unloading side
• Forced convection heating system with :
  • Hot air re-circulating system
  • Horizontal air flow, side to side blow direction
• Oven wall mounting type electrical control panel
• One touch operating system
• PLC-wired control circuit
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

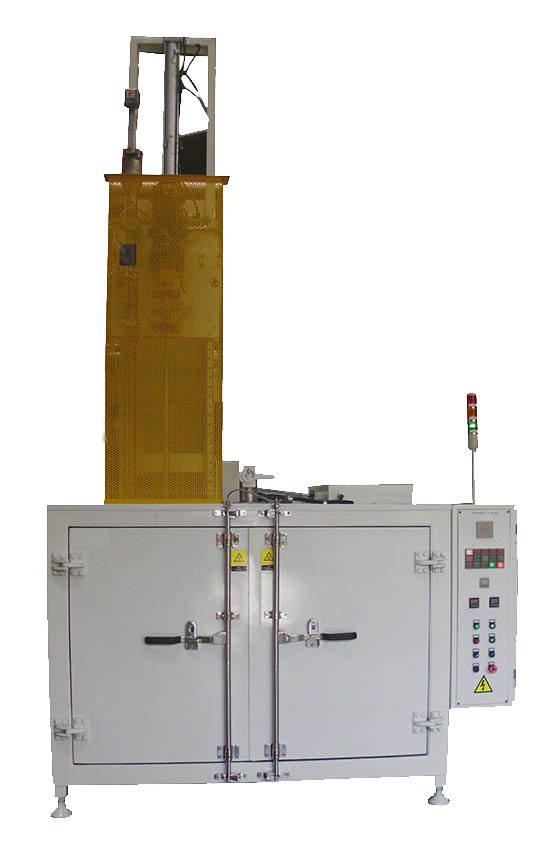

• Designed & manufactured for preheating material (epoxy) inside drum
• Capable to load 2 drum (Each size: dia. 500 mm x Height 700 mm )
• Maximum operating temperature up to 200°C
• Inner dimension  : Width 1680 mm x Depth 845 mm x Height 1300 mm
• SUS 304 Stainless Steel plate interior
• Manual operated double leaf swing door
• Manual adjustable air inlet and exhaust dumper
• Ramp adjustable conveyor table with pneumatic stopper between preheating & stirring section
• SUS 304 stirrer & vacuum pipe
• Motorized stirrer by geared motor
• Stirred & vacuum pipe pneumatic lifter
• Pneumatic actuated dripped collecting tray
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal air flow, side to side air flow by 2 Nos circulation blower
• Oven wall mounting type electrical control panel
• PLC ( Programmable Logic Control ) control circuit
• Full installed sensor part on chamber door, collecting tray , stirrer (position & rotation sensor), compressed air pressure switch & vacuum pressure switch.
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Pulse heating control by Solid State Contactor ( SSC ).

Spare Parts Warranty : 1 Year (Normal Operation)

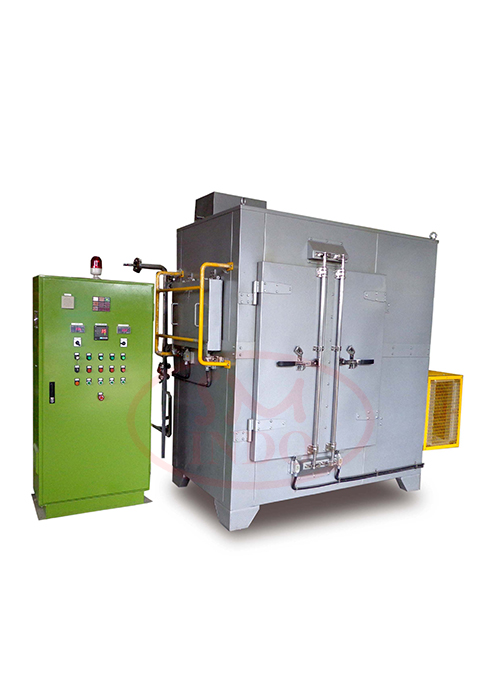

• Designed & manufactured for jet spinner parts cleaning ( Textile industries )
• Maximum operating temperature up to 500°C (Normal: 450°C )
• Inner dimension   : Width 1080 mm x Depth 750 mm x Height 1200 mm
• SUS 304 Stainless Steel plate interior
• SUS 304 steam spraying pipe
• Manual operated double leaf swing door
• Pneumatic actuated air inlet and exhaust dumper
• Pneumatic actuated steam nitrogen valve
• Forced convection with :
  • Hot air re-circulating system
  • Vertical air flow, from top wall return to bottom wall
• Remote floor standing type electrical control panel
• PLC ( Programmable Logic Control ) control circuit
• Full installed sensor part on bomb shell blasting door, steam & compressed air piping line
• Programmable temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

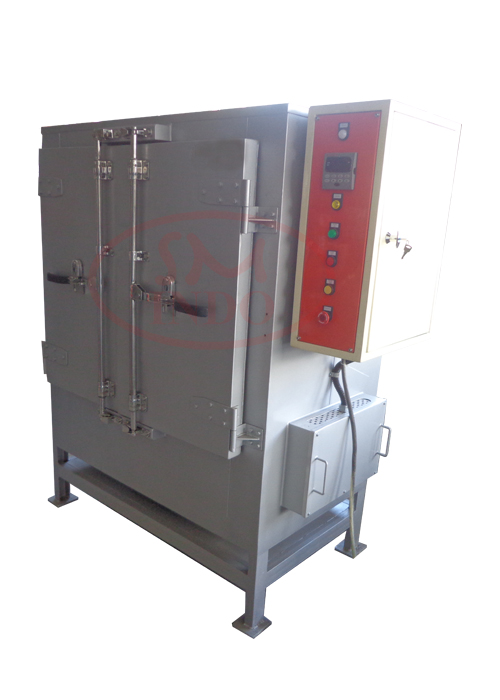

• Designed and manufactured for pre heating ceramic stalk of LPDC (Low Pressire Die Casting) Machine
• Maximum operating temperature up to 350°C (Working: 300°C)
• Inner dimension : Width 1000 mm x Depth 465 mm x Height 900 mm
• Sus 304 Stainless steel plate interior
• Manual operated double leaf swing door
• Free / Natural convection heating system
• Heat is transferred from the bottom up through the work load and exits through vents in the top
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Full proportional heaitng control by SCR power regulator

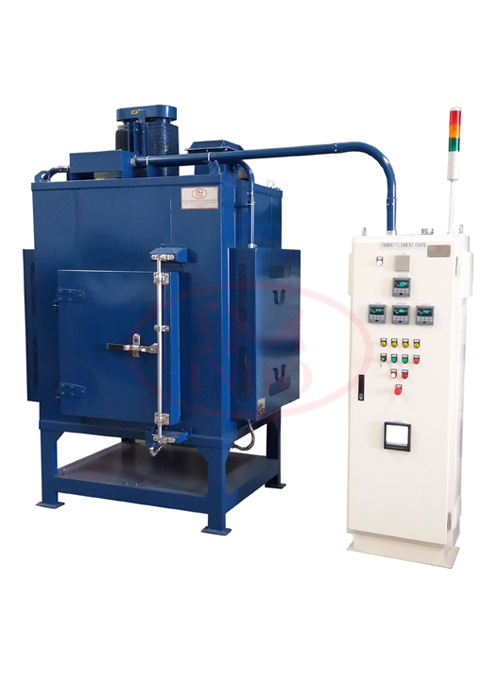

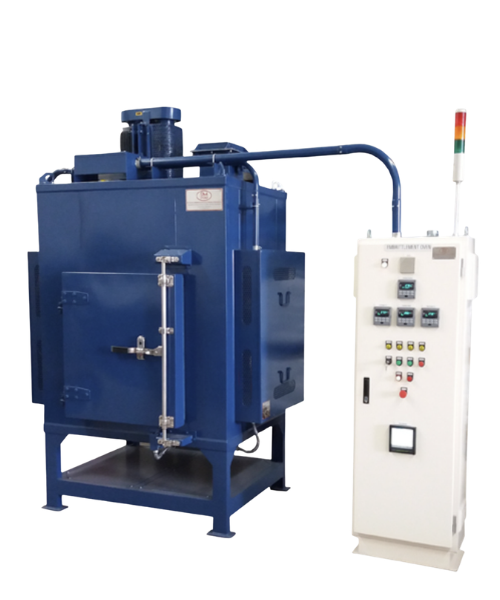

The SUHATHERM Embrittlement Oven (EO-01) is an up to 400 °C industrial oven without nitrogen purging system. This oven manufactured for the de-embrittlement process of machined aerospace parts after electroplating - without inert environment. This oven is engineered to conform to AMS2750 class 2 pyrometry standards.

• Maximum operating temperature up to 400 °C
• AMS 2750 class 2 Standard (Uniformity: ± 6 °C)
• Inner dimension: W. 700 mm x D. 600 mm x H. 700 mm
• SUS 304 stainless steel plate interior
• Airtight single leaf manual swing door
• Forced convection heating system with:
  • Hot air re-circulating system
• Forced exhauster with automatic (motorized) fresh-air inlet and exhaust dumper
• Digital indicating AMS2750 compliant PID temperature controller c/w SCR control
• System accuracy test (SAT) & temperature uniformity survey (TUS) port installed.
• Equipped with dedicated overheat protection system
• Industrial metal sheathed thermocouple type N completed with UKAS calibration certificate

Optional

• AMS2750 compliant data logger (paperless temperature recorder)
• HMI touchscreen (PLC) control system
• (Optional) Nitrogen gas purging system
  • Refer to EO-02 Embrittlement Oven for oven with nitrogen purging system

Please contact us at cs@smindo.co.id to learn more about this oven.

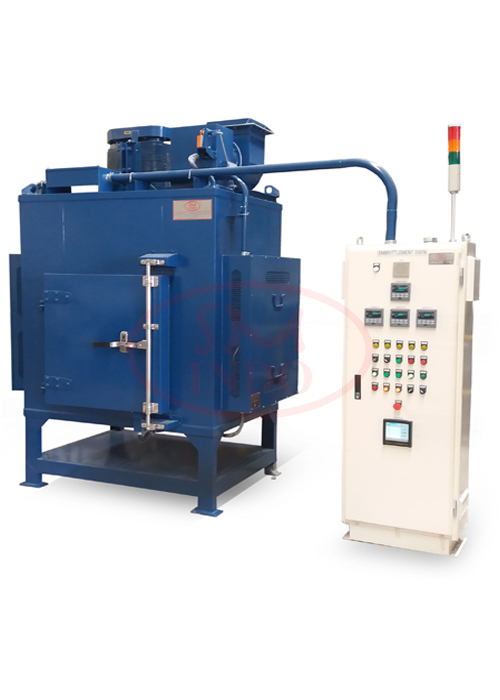

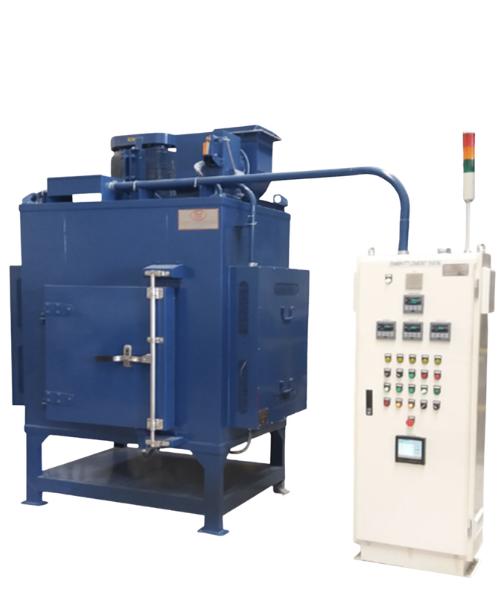

The SUHATHERM Embrittlement Oven with Nitrogen Purging (EO-02) is an up to 400 °C industrial oven with nitrogen purging system. This oven manufactured for the de-embrittlement process of machined aerospace parts after electroplating - with inert environment. This oven is engineered to conform to AMS2750 class 2 pyrometry standards.

• Maximum operating temperature up to 400 °C
• AMS 2750 Class 2 Standard (Uniformity: ± 6 °C)
• Inner dimension: W. 700 mm x D. 600 mm x H. 700 mm
• SUS 304 stainless steel plate interior
• Airtight single leaf manual swing door
• Forced convection with:
  • Hot air re-circulating system
• Forced exhauster with automatic (motorized) fresh-air inlet and exhaust dumper
• (Optional) Installed with nitrogen gas purging system
• Digital indicating AMS2750 compliant PID temperature controller c/w SCR control
• System accuracy test (SAT) & temperature uniformity survey (TUS) port snstalled.
• Equipped with overheat protection system
• Industrial metal sheathed thermocouple type N completed with UKAS calibration certificate

Optional

• AMS2750 compliant data logger (paperless temperature recorder)
• HMI touchscreen (PLC) control system
• (Optional) Nitrogen purging system
  • Refer to EO-01 Embrittlement Oven for oven without purging system

Please contact us at cs@smindo.co.id to learn more about this oven.

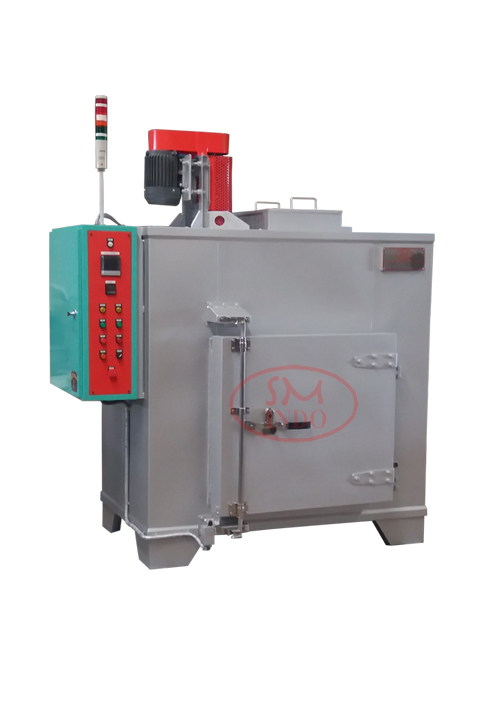

• Designed & Manufactured for Oven Storage of Automotive production parts
• Maximum operating temperature up to 360 °C (Working Temperature : 300 °C )
• Inner Dimension : WIdth 850 mm x Depth 600 mm x Height 750 mm
• SUS 304 Stainless Steel interior
• Air tight single leaf manual swing door
• Forced convection heating system with :
  • Hot air re-circulating system
  • Horizontal blow, side to side blowing direction
• Manual adjustable sliding dumper
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR Power Regulator (Very good linear control, high accuracy, fast response, able to keep steady temperature well and extend heater life)
