Specification

The SUHATHERM Top Loading Oven (TLO-01) is suitable for general drying process where overhead handling systems are used for workpiece loading.

• Suitable for drying process
• Maximum operating temperature up to 120°C
• Inner Dimension: W. 600 mm x D. 1600 mm x H. 1200 mm
• Mechanical convection heating system by radiant heaters.
• SUS 304 stainless steel interior
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Industrial process RTD PT100 temperature sensor
• (Optional) Full proportional heating control by SCR power regulator (thyristor)
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

The SUHATHERM Top Loading Oven (TLO-02) is suitable for general heat processing where overhead handling systems are used for workpiece loading. This oven is equipped with pneumatic lifting-up door for easy operation.

• Suitable for heat processing up to 260 °C
• Inner dimension: W. 450 x D. 450 x H. 300 mm
• Mechanical convection heating system with 4 heating side
• SUS 304 stainless steel interior
• Auto swing up door actuated by pneumatic cylinder
• Remote floor standing type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process.
• Industrial process thermocouple type K ex. SUHATHERM
• On/off heating control
• (Optional) Full proportional heating control by SCR power regulator (thyristor)



Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

The SUHATHERM Top Loading Oven (TLO-03) features multiple (4 nos) individually controlled heating chamber in single body construction - allows for versatile production while maintaining a compact footprint.

• Suitable for heat processing up to 360 °C
• 4 number individual controled heating chamber
• Overall Dimension: W. 800 x D. 2400 x H. 825 mm
• SUS 304 stainless steel interior
• Separately controlled mechanical convection heating system on each chamber
• Microprocessor based PID digital indicating temperature controller on each chamber
• Overheat protection system
• Digital timing system for soaking/holding process.
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR (thyristor) power regulator

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

The SUHATHERM Top Loading Oven (TLO-04) is a compact, mobile operated top loading oven, suitable for drying process.

• Suitable for drying process up to 320 °C
• Inner dimension: W. 400 mm x D. 900 mm x H. 300 mm
• SUS 304 stainless steel interior
• 2 Nos airtight single leaf swing up door
• Mechanical convection heating system
• Angle type bimetallic thermometer gauge, range up to 500°C
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple sensor ex. SUHATHERM
• On/Off heating control
• (Optional) Full proportional heating control by SCR power regulator (thyristor)

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.



Specification

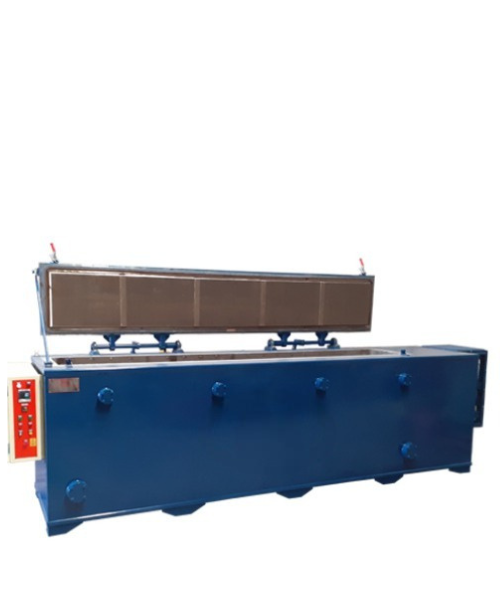

The SUHATHERM Top Loading Oven (TLO-05) features a pneumatic-actuated top loading, with a maximum operating temperature up to 315 °C. This oven is suitable for oil & gas drill head heating process & equpiment qualification testing.

• Maximum operating Temperature up to 315 °C
• Inner dimension: W. 600 mm x D. 1100 mm x L. 4000 mm
• Temperature uniformity: ± 6 °C (measured under empty load condition)
• SUS 304 stainless steel interior
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
• Pneumatically-actuated swing up door, sealed by hi-temp door gasket
• Installed with 6 Nos access holes holes for inserting test pipe
• Manual adjustable fresh air inlet and exhaust dumper
• Installed with System Accuracy Test (SAT) & Temperature Uniformity Survey (TUS) ports for oven calibration
• Microprocessor based PID digital indicating temperature controller
  • (Optional) Re-transmission output PV (present value ) or SV (set value) communication
• Digital timing system for holding/soaking process
• Overheat protection system
• Full proportional heating control by SCR Power Regulator
• Industrial process thermocouple type K tex. SUHATHERM
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
