Specification

The SUHATHERM Bench Oven BO-03/21 is a multipurpose - heavy duty 21 ltr forced convection benchtop oven. This oven features maximum operating temperature of 300°C, with full proportional heating control for better heater control and extended durability.

This oven is available in 21 ltr & 53 ltr (BO-03/21 & BO-03/53) sizings, and features an optional paperless temperature recorder.

• Maximum operating temperature up to 300 °C
• Inner dimension: W. 350 mm x D. 200 mm x H. 300 mm (21 Ltr)
• Outer dimension (Approx.): W. 1280 mm x D. 580 mm x H. 800 mm
• SUS 304 stainless steel interior
• Mild steel exterior finished by protective paint
• Forced convection heating system with:
  • Electric heaters
  • Hot-air recirculating system
• Manually adjustable air inlet & exhaust outlet damper
• Microprocessor based PID digital indicating temperature controller c/w features:
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor)
• (Optional) 4-channel paperless temperature recorder

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

The SUHATHERM Drying Oven (DCO-03-325) is designed for heavy-duty baking/drying of various items, might that be automotive components, laboratory samples, and/or coals/minerals. This oven comes with 5 Nos SUS 304 shelves (tray) as standard.

With its compact footprint, this forced convection oven is ideal for uses in tight spaces.

• Maximum operating temperature up to 300 °C
• Inner dimension (approx.): W. 600 mm x D. 600 mm x H. 900 mm (Approx. 325 Ltr)
• Outer dimension (approx.): W. 1420 mm x D. 965 mm x H. 1740 mm
• SUS 304 stainless steel interior
• Air tight single leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
• Oven wall mounting type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR Power Regulator
  c/w Features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• Included 5 Nos SUS 304 workpiece trays
• (Optional) 4-channel paperless temperature recorder

Notes:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

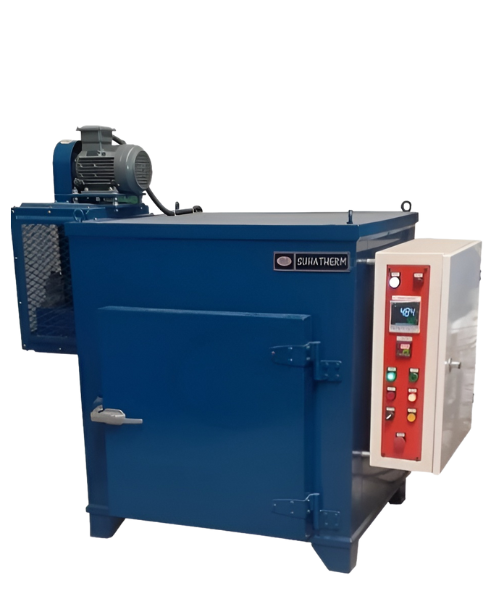

The SUHATHERM Bench Oven BO-05/125 is a versatile, multipurpose forced convection high-temperature oven. This oven features maximum operating temperature up to 500 °C with full proportional heating control for better heater control and extended durability.

This oven is available in 125 & 216 ltr (BO-05/125 & BO-05/216) sizings, and features an optional paperless temperature recorder.

• Maximum operating temperature up to 500 °C
• Inner dimension: W. 500 x D. 500 x H. 500 mm (125 ltr)
• SUS 304 stainless steel interior
• Mild steel exterior finished by Jotun Protective paint
• Air tight single-leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Temperature uniformity survey (TUS) port appended on oven body for independent temperature monitoring
• Oven wall-mounted type electrical control panel
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating heating system
  • Horizontal flow and side to side blowing direction
• Industrial process thermocouple type K ex. SUHATHERM
• Overheat protection system
• Microprocessor based PID digital indicating temperature controller
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
• Digital timing system for soaking/holding process
• Full proportional heating control by SCR power regulator (thyristor)
• Included 5 Nos SUS 304 workpiece trays
• (Optional) 4-channel paperless temperature recorder

Notes:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

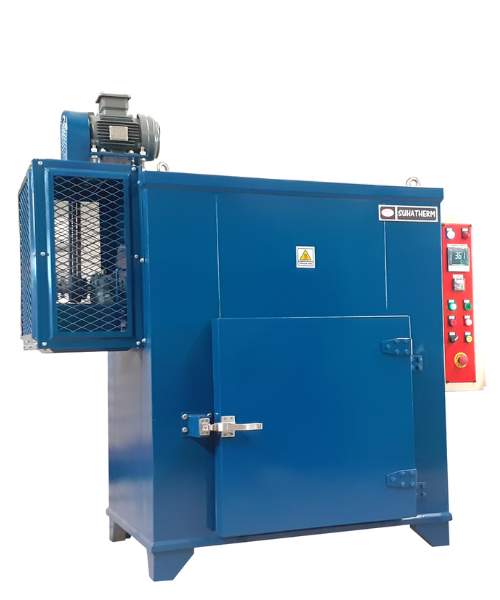

The SUHATHERM Bench Oven BO-05/216 is a versatile, multipurpose forced convection high-temperature oven. This oven features maximum operating temperature up to 500 °C with full proportional heating control for better heater control and extended durability.

This oven is available in 125 & 216 ltr (BO-05/125 & BO-05/216) sizings, and features an optional paperless temperature recorder.

• Maximum operating temperature up to 500 °C
• Inner dimension: W. 600 x D. 600 x H. 600 mm (216 ltr)
• SUS 304 stainless steel interior
• Mild steel exterior finished by Jotun Protective paint
• Air tight single-leaf manual swing door
• Manual adjustable air inlet and exhaust damper
• Temperature uniformity survey (TUS) port appended on oven body for independent temperature monitoring
• Oven wall-mounted type electrical control panel
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating heating system
  • Horizontal flow and side to side blowing direction
• Industrial process thermocouple type K ex. SUHATHERM
• Overheat protection system
• Microprocessor based PID digital indicating temperature controller
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
• Digital timing system for soaking/holding process
• Full proportional heating control by SCR power regulator (thyristor)
• Included 5 Nos SUS 304 workpiece trays
• (Optional) 4-channel paperless temperature recorder

Notes:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

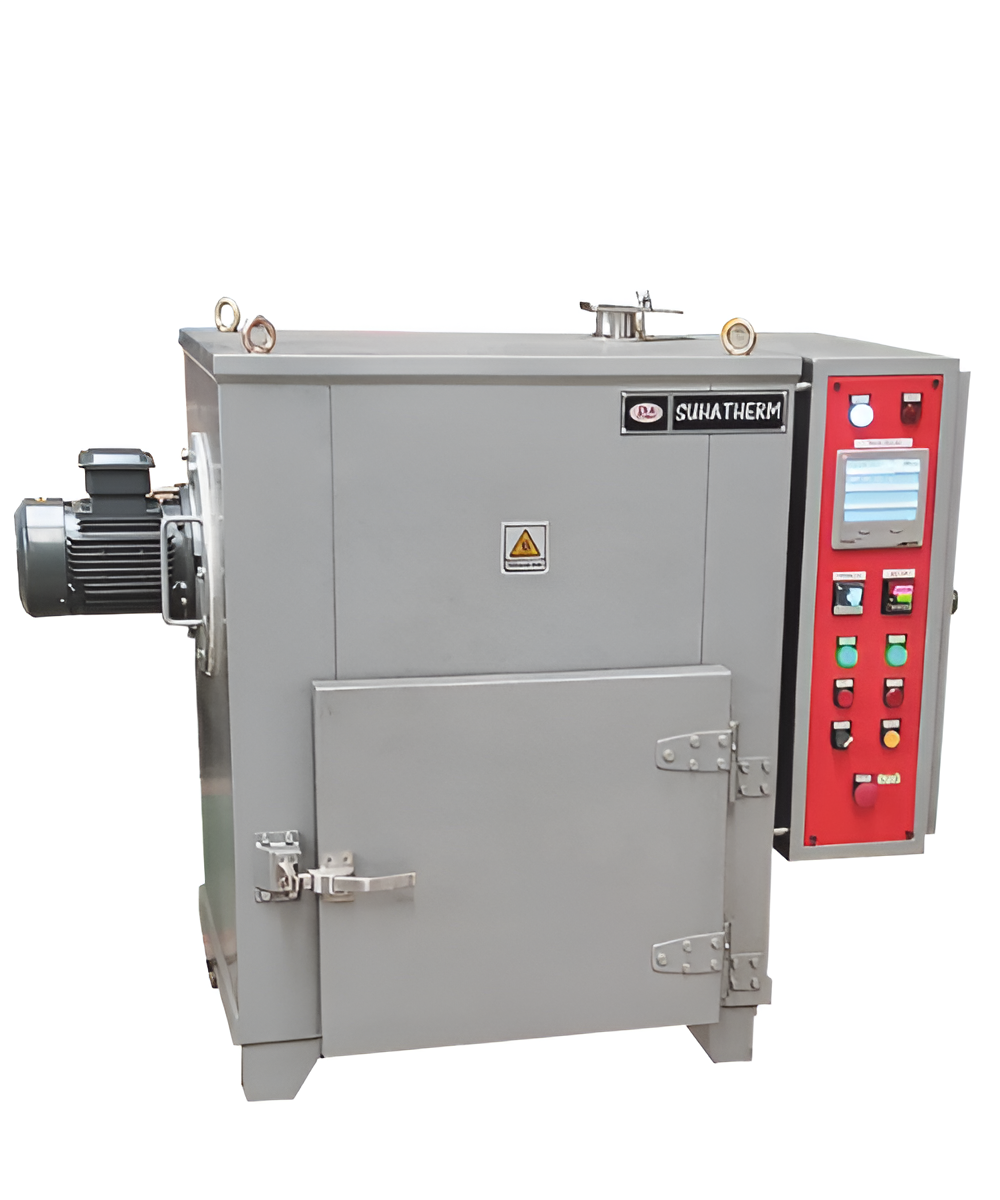

The SUHATHERM Bench Oven BO-03/53 is a multipurpose - heavy duty 53 ltr forced convection benchtop oven. This oven features maximum operating temperature of 300 °C, with full proportional heating control for better heater control and extended durability.

This oven is available in 21 ltr & 53 ltr sizings (BO-03/21 & BO-03/53), and features an optional paperless thermorecorder.

• Maximum operating temperature up to 300 °C
• Inner dimension: W. 400 mm x D. 400 mm x H. 335 mm (53 Ltr)
• Outer dimension (Approx.): W. 1335 mm x D. 770 mm x H. 1085 mm
• SUS 304 stainless steel interior
• Mild steel exterior finished by protective paint
• Forced convection heating system with:
  • Electric heaters
  • Hot air recirculating heating system
• Manual adjustable air inlet & exhaust outlet damper
• Microprocessor based PID digital indicating temperature controller c/w features:
  • Programmable up to 64 heating steps
  • Digital display screen for set point (SV) and actual (PV) temperature
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor)
• (Optional) 4-channel paperless temperature recorder

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
