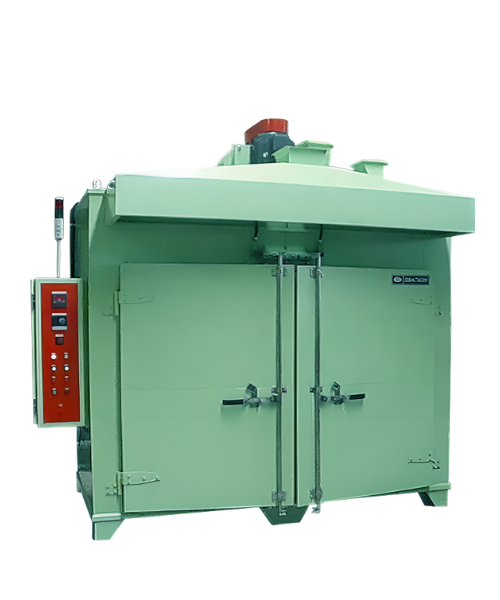

The SUHATHERM Walk-in Drying Oven (WIDO-03) is engineered for drying process of automotive components with irregularly shaped components.

• Maximum operating temperature up to 200 °C
• Inner dimension: W. 2165 mm x D. 1200 mm x H. 1600 mm
• SUS 304 stainless steel interior
• Air tight double-leaf swing door
• Manual adjustable air inlet and exhaust dumper
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Combination air flow, from both sides of the oven directed to the top wall, ensuring efficient heating of irregularly shaped items
• Oven wall-mounted type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

• Maximum operating temperature up to 500°C
• Inner dimension : Width 1000 mm x Depth 1800 mm x Height 900 mm
• SUS 304 Stainless steel interior
• Motorized lifting up door
• Motorized boogie & run on steel rails
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Digital timing system for soaking / holding process
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

• Maximum operating temperature up to 400°C
• Inner dimension : Width 2000 mm x Depth 2000 mm x Height 1900 mm
• SUS 304 Stainless steel interior
• Motorized lifting up door
• Motorized boogie & run on steel rails
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side oven wall return to top wall
• Remote floor standing type electrical control panel
• One touch operating system
• PLC ( Programmable Logic Control ) control current
• Microprocessor based digital indicating temperature controller
• Digital timing system for soaking / holding process
• Overheat protection system
• Industrial process thermocouple sensor
• 3 channel paper chart thermo recorder ( Optional: Paperless thermo recorder )
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

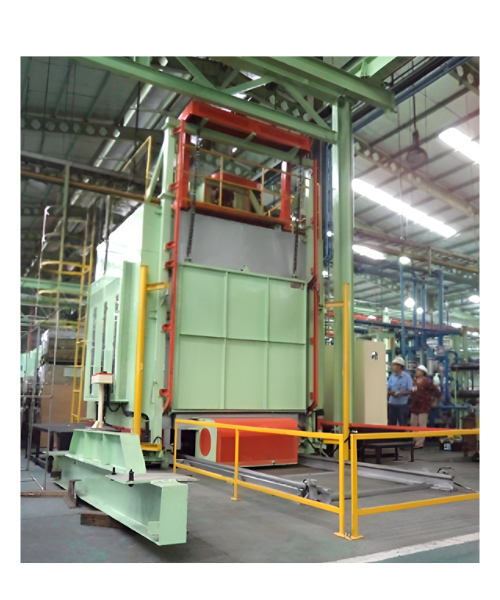

Our Bogie-Hearth 600 °C high-temperature oven (BH-HTO-03) is designed for the stress relieving process in heavy-duty machinery industry

Oven Construction

• Maximum operating temperature up to 600 °C
• Inner dimension: W. 2000 mm x D. 2000 mm x H. 1900 mm
• SUS 304 stainless steel interior, with mild steel plate exterior finished by heat-resistant paint.
• Motorized lifting-up oven door
• Forced convection heating system with:
  • Hot-air recirculating system
• Remote floor-standing type control panel

Work Load Handling Equipment

• The oven will be equipped with a motorized bogie-on-steel-rails.

Electrical Features

• One-touch operating system
• Microprocessor-based digital indicating temperature controllers
• Digital timing system for the soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator

Safety

• Overheat protection
• Overmoving (wrong step) precaution system on oven door
• Emergency push button
• 3-stage tower lamp for oven condition indication

(Optional)

• (Optional) 8-channel paperless thermorecorder
• (Optional) PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

• Maximum operating temperature up to 300°C
• Inner dimension : Width 720 mm x Depth 800 mm x Height 530 mm
• SUS 304 Stainless Steel plate interior
• Manual lifting up by oven door arm
• Manual adjustable exhaust dumper
• Mechanical convection heating system by electric heater from both side oven wall
• Oven wall mounted electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

• Twin chamber with gravity roller at front & inner side vertical lift door oven
• Maximum operating temperature up to 250°C (Chamber 1) & 450°C (Chamber 2)
• Inner dimension (On each chamber) : Width 550 mm x Depth 1500 mm x Height 700 mm
• SUS 304 Stainless Steel plate interior
• Manual lifting up by oven door arm
• Manual adjustable exhaust dumper
• Mechanical convection heating system by electric heater from both side oven wall
• Oven wall mounted electrical control panel ( 1 Panel on each chamber)
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• On / off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

• Suitable for heating process with working temperature up to 200°C ( Max )
• Inner dimension : Width 1000 mm x Depth 2000 mm x Height 1500 mm
• SUS 304 Stainless Steel plate interior
• Motorized lifting up door
• Manual entrance & exit work piece trolley
• Manual adjustable air inlet and exhaust dumper
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from both side of oven wall return to the top wall
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Digital timing system for soaking / holding process
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator
• Custom work piece trolley ( optional )

Spare Parts Warranty : 1 Year (Normal Operation)

The multi chamber burner source semi-continuous oven (MSCB-SCO) utilizes natural gas burners as its primary heat source. Designed for electrode baking process, it supports multi-chamber, multi-step heating processes up to 480 °C.

• Suitable for welding electrode baking process
• Gas burner heating source
• 5 semi-continuous heating/cooling zone
• Maximum temperature on each chamber :
  • Zone 1 : up to 95 °C (Drying with utilized heat source from zone 2~3 fuel gas chamber )
  • Zone 2 : up to 240 °C (1st Baking)
  • Zone 3 : up to 480 °C (2nd Baking)
  • Zone 4 : up to 480 °C (3rd Baking)
  • Zone 5 : up to 50 °C  (Forced cooling)
• Inner dimension (On each chamber) : W. 1500 mm x D. 14800 mm x H. 1900 mm
• Pneumatic lifting-up door on each chamber
• Motorized work piece trolley conveyor
• Forced convection heating system on Zone 1~ Zone 4 heating chamber with :
  • Hot air re-circulating system
  • Combination air flow from both side of oven wall and return to top wall
• Forced cooling system on Zone 5 cooling chamber with :
  • Once-through cooling air
  • Combination cooling air flow from both side of chamber wall exhausted to the outside
• Excess dampness extraction blower on zone 2 & 3 chamber
• Fuel gas exhauster blower on zone 1 chamber
• Pneumatic air inlet and exhaust damper on zone 2 & zone 3 chamber
• Motorized fuel gas damper on zone 1 chamber
• Touch screen (HMI) operating system with PLC-wired control circuit
• Full protection system on burner, pneumatic, conveyor, heating & cooling parts.
• Full proportional heating & cooling control
• (Optional) 18-channel paperless thermorecorder
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

• Designed & manufactured for Heat treatment process (Annealing) of drinking water gallon
• Work piece production capacity : 5-6 Pcs/min
• Work piece temperature (Bottom side) : 125°C to 130°C
• Overall dimension (Loading, Heating & Unloading): Width 900 mm x Length 2410 mm x Height 1850 mm
• Mild steel plate frame material
• Roller chain with steel rod conveyor belt
• Motorized conveyor belt with adjustable belt speed control
• Radiant heating system by infrared heater
• Force exhaust at heating chamber and force cooling blower at cooling chamber
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• Full proportional control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)
