Specification

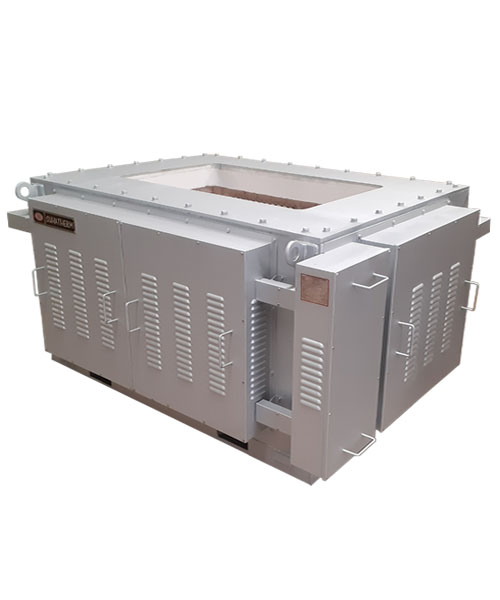

The SUHATHERM Zinc Melting Furnace (ZNMF-550-2200) is designed with a 550 kg/hr zinc melting rate and 2500 kg molten holding capacity.

Furnace Construction

• Melting Rate: 550 Kg/Hour, Holding Rate: 2500 Kg
• Inside Dimension (Approx.): W. 1240 mm x D. 740 mm x H. 740 mm
• Outside Dimension (Approx.): W. 1940 mm x D.1440 mm x H.1085 mm
• Combination of lining with ceramic fibre board, fire brick backed up by insulating brick, & hi-alumina castable to ensure low heat loss & power consumption while maintaining a low sheath temperature.
• Melting & holding chamber heat source by a deep corrugated electric heater element
• Remote floor standing type electrical control panel
• PLC wired control circuit
• Overheat protection system
• Microprocessor based PID digital indicating temperature controllers
• Full proportional heating control by SCR power regulator c/w features;
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

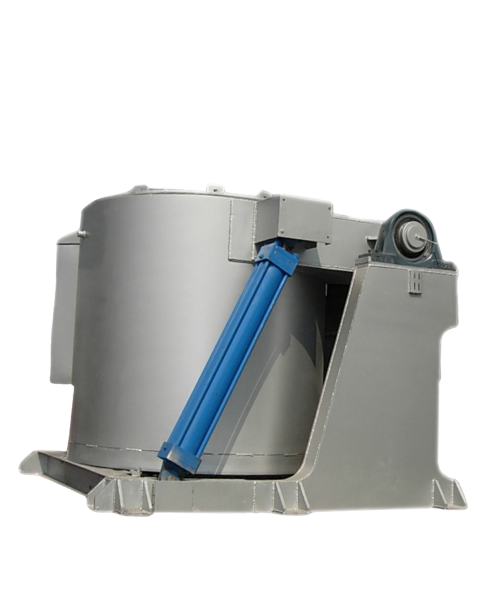

The SUHATHERM Zinc Titling Melting Furnace (ZNMF-T-750-1500) is a tilting furnace with a 750 kg/hr zinc melting rate and 1500 kg molten holding capacity.

Furnace Construction

• Melting rate: 750 Kg/Hour, Holding Rate: 1500 Kg
  • Automatic tilting by hydraulic cylinder
• Furnace dimension (Approx.): W. 2050 mm x D.2050 mm x H.1550 mm
• Silicon carbide crucible
• High-alumina castbale backed-up by multi-layer insulation material
• Chamber heat source by electric heater element
• Remote floor standing type electrical control panel
• Overheat protection system
• Microprocessor based PID digital indicating temperature controllers
• Full proportional heating control by SCR power regulator c/w features;
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
