• Suitable for drying process
• Maximum operating temperature on each zone :
  • Zone 1 : Up to 200°C max
  • Zone 2 : Up to 200°C max
  • Zone 3 : Up to 200°C max
• Overal dimension (Loading, Heating & Unloading) : Width 1500 mm x Length 8170 mm x Height 2450 mm
• SUS 304 Stainless Steel interior
• Forced convection with :
  • Hot air re-circulating system
  • Combination air flow from top & bottom side return to both side of oven wall
  • 3 Nos heating zones
• Exhaust hood at loading & unloading zone and exhaust outlet with swing dumper on each heating zone
• Net PTFE coated fibre glass type conveyor belt
• Motorized conveyor belt with adjustable belt speed control
• Remote floor standing type electrical control panel
• Touch screen operation system (HMI)
• PLC (Programmable Logic Control) control circuit
• Full wired with safety system (Overheat protection, conveyor belt abnormal moving protection, conveyor motor, circulation blower & heater element protection system)
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for drying automotive parts
• Maximum operating temperature up to 200°C
• Inner dimension : Width 490 mm x Length 1150 mm x Height 170 mm
• SUS 304 Stainless Steel interior
• Direct heating by tubular heater with :
  • Top & bottom heating side
  • Agitating fan on top side
• Force cooling by axial fan, on unloading side
• Custom conveyor belt (Flat conveyor belt with work piece holder)
• Motorized conveyor belt with adjustable belt speed control
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• On / off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for drying automotive parts
• Maximum operating temperature up to 200°C
• Inner dimension : Width 590 mm x Length 2000 mm x Height 170 mm
• SUS 304 Stainless Steel interior
• Custom conveyor belt (Flat conveyor belt with work piece holder)
• Direct heating by tubular heater with :
  • Top & bottom heating side
  • Agitating fan on top side
• Motorized conveyor belt with adjustable beld speed control
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Industrial process thermocouple sensor
• On/ off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for preheating material (epoxy) inside drum
• Capable to load 2 drum (Each size: dia. 500 mm x Height 700 mm )
• Maximum operating temperature up to 200°C
• Inner dimension  : Width 1680 mm x Depth 845 mm x Height 1300 mm
• SUS 304 Stainless Steel plate interior
• Manual operated double leaf swing door
• Manual adjustable air inlet and exhaust dumper
• Ramp adjustable conveyor table with pneumatic stopper between preheating & stirring section
• SUS 304 stirrer & vacuum pipe
• Motorized stirrer by geared motor
• Stirred & vacuum pipe pneumatic lifter
• Pneumatic actuated dripped collecting tray
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal air flow, side to side air flow by 2 Nos circulation blower
• Oven wall mounting type electrical control panel
• PLC ( Programmable Logic Control ) control circuit
• Full installed sensor part on chamber door, collecting tray , stirrer (position & rotation sensor), compressed air pressure switch & vacuum pressure switch.
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Pulse heating control by Solid State Contactor ( SSC ).

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for jet spinner parts cleaning ( Textile industries )
• Maximum operating temperature up to 500°C (Normal: 450°C )
• Inner dimension   : Width 1080 mm x Depth 750 mm x Height 1200 mm
• SUS 304 Stainless Steel plate interior
• SUS 304 steam spraying pipe
• Manual operated double leaf swing door
• Pneumatic actuated air inlet and exhaust dumper
• Pneumatic actuated steam nitrogen valve
• Forced convection with :
  • Hot air re-circulating system
  • Vertical air flow, from top wall return to bottom wall
• Remote floor standing type electrical control panel
• PLC ( Programmable Logic Control ) control circuit
• Full installed sensor part on bomb shell blasting door, steam & compressed air piping line
• Programmable temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Full proportional heating control by SCR power regulator

Spare Parts Warranty : 1 Year (Normal Operation)

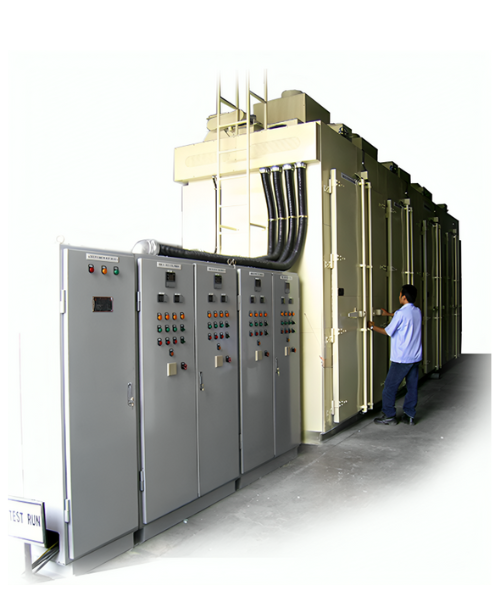

The SUHATHERM Large Multi-Chamber Walk-in Drum Oven (LPM-WIDO) uniquely features a distinctive design that integrates 4 independently controlled chambers - each with 8 Nos drums capacity within a single oven construction.

• Engineered for preheating additive oil in drums, with 8 Nos drum capacity on each chamber
• Maximum operating temperature up to 100 °C
• Inner dimension per chamber: W. 1600 mm x D. 1600 mm x H. 2700 mm
• M/S plate interior finished by heat resistant paint
• Manually-operated double leaf swing door on each chamber
• Pneumatically actuated air inlet and exhaust damper
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
  • Combination air flow, from both side oven wall return to top wall
• Forced exhauster use to safely remove vapor during drum preheating process
• Remote floor standing type electrical control panel
• Microprocessor based PID digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Custom-designed tray & trolley for user workpiece

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Our multi zone annealing conveyor oven, also known as annealing oven is designed & manufactured for annealing automotive parts. We equipped this conveyor oven with human machine interface (HMI) to enable better user ergonomics.

• Maximum operating temperature up to 200°C
• Overall dimension (Loading, Heating & Unloading) : Width 1430 mm x Length 7500 mm x Height 2315 mm
• SUS 304 Stainless Steel interior
• SUS 304 cross rod wire mesh belt with chain
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal air flow, side to side blow direction
  • Hepa filter at return side
  • 4 Nos heating zones
• Motorized conveyor belt with adjustable belt speed control
• Air curtain blower at entrance & exit side of heating chamber
• Exhaust hood at loading side
• Exhaust hood & exhaust fan on top and force cooling fan from bottom at unloading side
• Remote floor standing type electrical control panel
• Touch screen (HMI) operating system
• PLC (Programmable Logic Control) control circuit
• Full wired with safety system (overheat protection, belt abnormal, conveyor motor, circulation blower, air curtain exhaust blower & cooling blower overload / abnormal.
• Industrial process thermocouple sensor
• On / off heating control (Optional: Full proportional heating control)

Spare Parts Warranty : 1 Year (Normal Operation)

• Designed & manufactured for stress relieving automotive parts
• Gas burner heating source
• Maximum operating temperature up to 500°C
• Overall dimension : Width 2820 mm x Length 6450 mm x Height 3110 mm
• SUS 304 Stainless Steel interior
• Forced convection with :
  • Hot air re-circulating system
  • Vertical air flow, from top return to top wall via both side oven wall
• Exhaust hood with exhaust blower at heating chamber entrance side
• Air curtain blower at heating chamber outlet side
• Force exhauster with large exhaust blower at cooling section before unloading side
• Custom conveyor belt (Heat resistant V box conveyor belt)
• Motorized conveyor belt with adjustable speed control
• Remote floor standing type electrical control panel
• Microprocessor based digital indicating temperature controller
• Industrial process thermocouple sensor
• Overheat protection system
• Full protection system on burner part, conveyor belt & cooling section part
• Full proportional heating control by modutrol
• 6 channel paper chart thermo recorder

• Designed and manufactured for pre heating ceramic stalk of LPDC (Low Pressire Die Casting) Machine
• Maximum operating temperature up to 350°C (Working: 300°C)
• Inner dimension : Width 1000 mm x Depth 465 mm x Height 900 mm
• Sus 304 Stainless steel plate interior
• Manual operated double leaf swing door
• Free / Natural convection heating system
• Heat is transferred from the bottom up through the work load and exits through vents in the top
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking / holding process
• Industrial process thermocouple sensor
• Full proportional heaitng control by SCR power regulator
