Specification

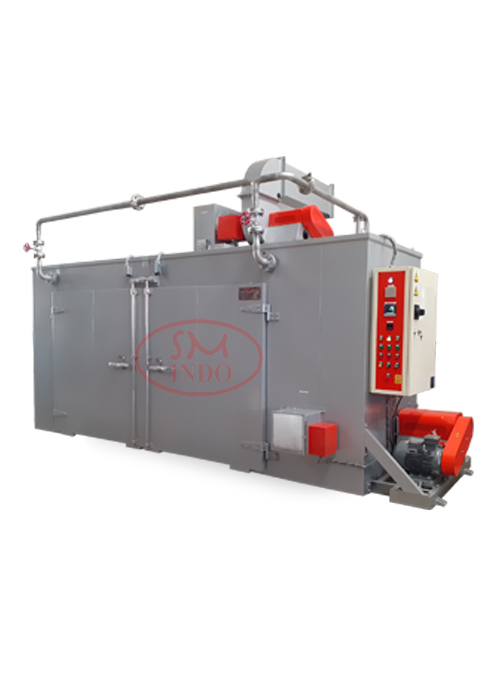

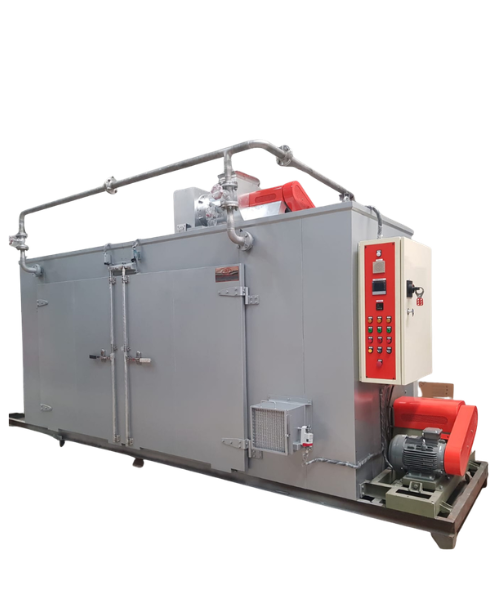

The SUHATHERM Cartridge Filter Drying Oven (CFDO-01) is manufactured for cartridge filter drying process after filter washing. Designed with steam heat source - this oven is suitable for food & beverage plants operating on a steam boiler.

• Maximum Operating temperature up to 90 ºC
• Inner dimension : W. 3000 mm x D. 1000 mm x H. 1600 mm
• Mild steel plate interior & exterior
• Air tight double leaf manual swing door
• Forced convection system with :
  • Hot air re-circulating system
  • Horizontal air flow from side to side blowing direction
  • Single zone heating control with steam-heated radiator source
• Oven wall-mounted type electrical control panel
• Mircoprocessor based digital indicating temperature controller
• Overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple sensor
• Equipped with pulsed steam heating control
• Equipped with automatic door switch (safety interlock circuit)

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

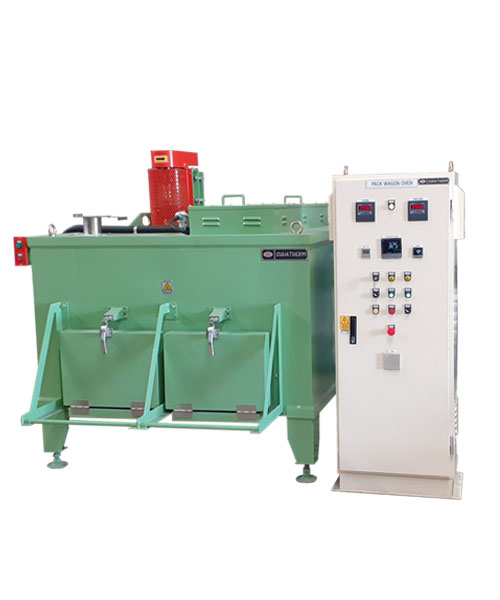

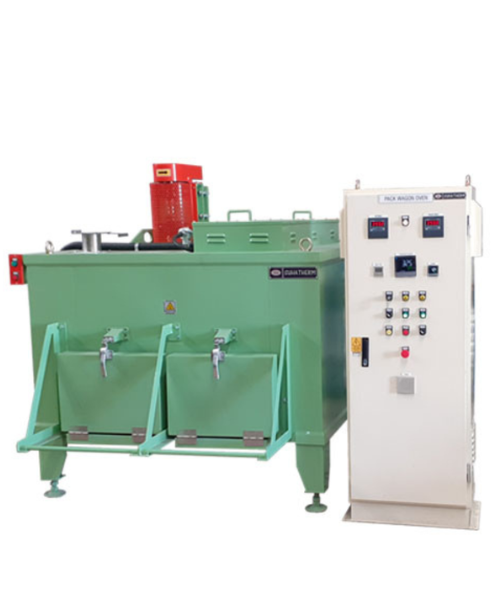

The SUHATHERM Circulation Oven (CRO-01), designed up to 325 °C for synthetic fiber heat processing.

Oven Construction

• Up to 325 °C with forced convection
• Inner dimension: W. 450 mm x D. 1250 mm x H. 250 mm
• Capability for Loading: 10 Tray x 1 Pcs = 10 Work Pieces/Section
• SUS 304 stainless steel interior, with mild steel plate exterior finished by heat-resistant aluminium paint.
• Electrical heater as a heat source
• Forced convection with :
  • Hot air re-circulating system
  • Horizontal airflow with side-to-side blowing direction
  • Hi-temperature circulation blower
• Remote floor standing type electrical control panel
• Industrial process thermocouple type K with stainless steel protection tube & aluminium protection head

Electrical Features

• Full proportional heating control by SCR power regulator to enable high accuracy, fast response, and uniformity while extending heater life
• Thermo controller with chamber temperature control, digital temperature controller, PID action control, and SCR output thermocouple

Safety

• Overheat protection
• Full electrical interlock to shut off heating power if circulation blower is interrupted
• Easy-to-see on/off selector switch c/w lamp to inform the status of the blower and heating element

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.

Specification

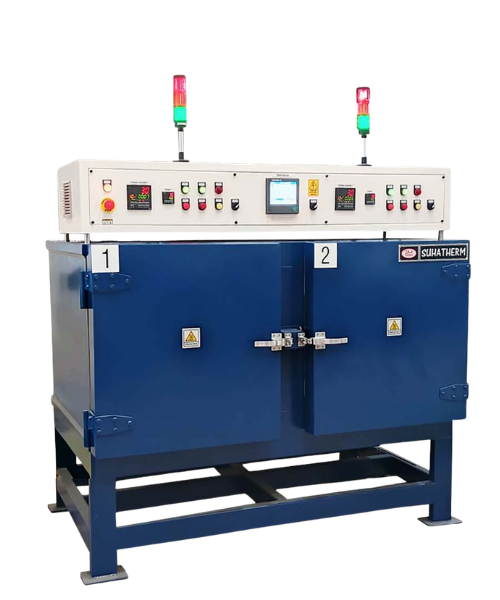

The SUHATHERM Dual Chamber Oven (DUCO-01) is a designed with dual, individually controlled chambers in one oven design, maintaining large loading capacity with compact footprint. Designed with 300 °C max. operating temperature & 5 heavy-duty workpiece trays per chamber, this oven is suitable for any thermal processing (stress relieving, other heat treatment, etc.) of various materials.

• Maximum operating temperature up to 300 °C
• Inner dimension: 2 chambers @W. 600 x D. 600 x H. 600 mm per chamber
• SUS 304 stainless steel interior
• Air tight single-leaf swing door on each chamber
• 5 pcs heavy-duty SUS 304 workpiece trays on each chamber (total 10 supplied)
• Manual adjustable air inlet and exhaust dumper
• Forced convection heating system with:
  • Electric heaters
  • Hot air re-circulating system
• Oven roof-mounted type electrical control panel with individual tower lamps indicating status of each chamber
• Microprocessor based PID digital indicating temperature controllers
  • Each chamber separately controlled
• Multi-level overheat protection system
• Digital timing system for soaking/holding process
• Industrial process thermocouple type K ex. SUHATHERM
• Full proportional heating control by SCR power regulator (thyristor) c/w features:
  • PWM system for very good linear control
  • High accuracy and fast response
  • Able to keep steady temperature very well
  • Extends heater life
• (Optional) 4-channel paperless thermorecorder, PLC-HMI touchscreen operating system
• (Optional) Compliance to SAE AMS2750 Pyrometry Rev. H requirements

Note:

The above specifications are for general reference only. For detailed technical specifications & custom-designed solutions, please contact cs@smindo.co.id.
